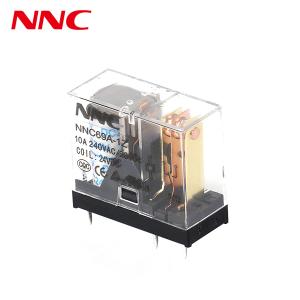

Brand Name :NNC
Model Number :NNC69A
Certification :CE/TUV/UL/CCC
Place of Origin :China
MOQ :600pcs
Price :get latest price
Payment Terms :T/T
Supply Ability :2k pcs 7 days
Delivery Time :7-14 days
Theory :PCB Relay
Contact Material :Silver Alloy
Ambient temperation :-55℃~70℃
Endurance :Mechanical life:10,000,000 times Electrical life:100,000 times
Ambient humidity :35%-80%RH
Dimension :29mm×13mm×25.5mm
Weight :approx. 17g/PCS
Rated load :10A 16A 5A
Installation :PCB or Socket with DIN Rail
Coil power :DC:0.53W AC:1.0VA
Pick-up time :≤20ms
Release time :≤10ms
Contact resistance :≤100mΩ
